Simple Voltage Regulator AVR-645

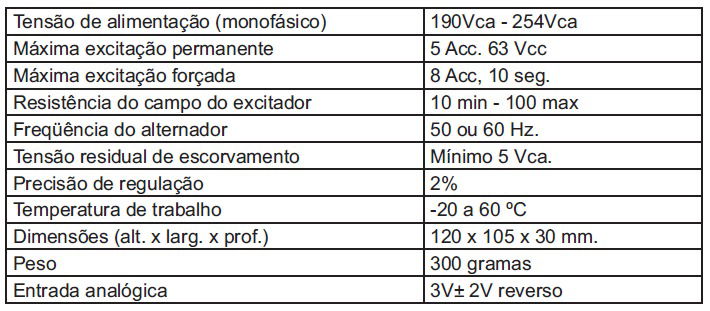

The AVR-645 automatic voltage regulators are designed to be applied to brushless alternators at a frequency of 50 or 60 Hz, without an auxiliary permanent magnet alternator (PMG). Its power comes from the alternator itself and must be between 190 and 254 Vac. The exciter field resistance must be 10 to 100 Ohms.
